Automatic high speed industrial quilting machine for comforter duvet
computer control, quilting speed can reach max 3500 RPM, quilting thickness can reach max 8cm
high automated operation, automatic shutdown when the thread is broken
Whatsapp:+8618322112838
E-mail: rita@huimei-machine.com
Automatic high speed industrial quilting machine for comforter duvet is a computer-controlled quilting machine equipped with automatic control system and intelligent detection system, with fast quilting speed. It has high quilting precision, stability and high production capacity, and is well received by many bedding manufacturers. As a manufacturer with 20 years of quilting experience, Huimei provides industrial quilting machines of various specifications and models to meet the requirements of factory owners with different production scales and output requirements.
We take the most advanced HMH05 industrial quilting machine as an example:
| Product name | Automatic high speed industrial quilting machine for comforter duvet |
| Quilting size | 2.4*2.6 m, 2.6*2.8 m , 2.8*3.2m, 3.0*3.2 m |
| Quilting machine head | single head single needle direct drive machine head, double thread lock stitch, large rotary hook |
| Quilting speed | max 3500 RPM, stitch 2~7mm |
| Quilting thickness | max 1200 gsm, max 8 cm |
| Power | 220 V AC, 50 HZ, 1.5KW |
| Dimension | 5.0*3.5*1.75 m, 5.0*3.7*1.75 m, 5.2*4.0*1.75m, 5.2*4.2*1.75 m |
| Weight | 1200 kg/1300 kg/1500 kg/1800 kg |
As the flagship product of Huimei automatic high speed industrial quilting machine for comforter duvet, HMH05 has unparalleled advantages over other quilting machines.
1: High configuration, high quilting speed
The machine structure is optimized on the basis of increasing the thickness of steel. The full servo motor plus the optical axis guide head can achieve a maximum quilting speed of 3500 rpm, with high working efficiency and large production capacity.
2: Computer control, simple operation
Pre-installed Windows 7 operating system, remote maintenance control and system update. And record the output and equipment failure of the day; free switching between Chinese, English and Russian, the computer touch screen can design the quilting parameters in advance, such as selecting patterns, step length, needle speed, etc.
3: Unlimited creativity
All patterns can be stored on the hard disk. You can upload new patterns in DST format at will to make your unlimited ideas come true.
4: Thread break detection system
Automatically stop when thread break, automatically return to the origin after threading, reset with one button, and continue quilting
5: Automated operation
Direct drive head, automatic thread trimming, automatic oiling, automatic lifting, can quilt independent small patterns
6: High precision
Quilting complex patterns, the interface can be perfectly docked, the stitches are on the same line, and there is no deviation
7. High and low frame workbench
High and low frame workbench, convenient for changing quilt materials
Perfect service is also part of Automatic high speed industrial quilting machine for comforter duvet：
1: Many-to-one service mode: Professional technology and sales recommend suitable models according to production requirements, and are responsible for subsequent product operation issues
2: Worry-free logistics service: Door-to-door service, FOB, can be provided
3: Naked or wooden box packaging is optional

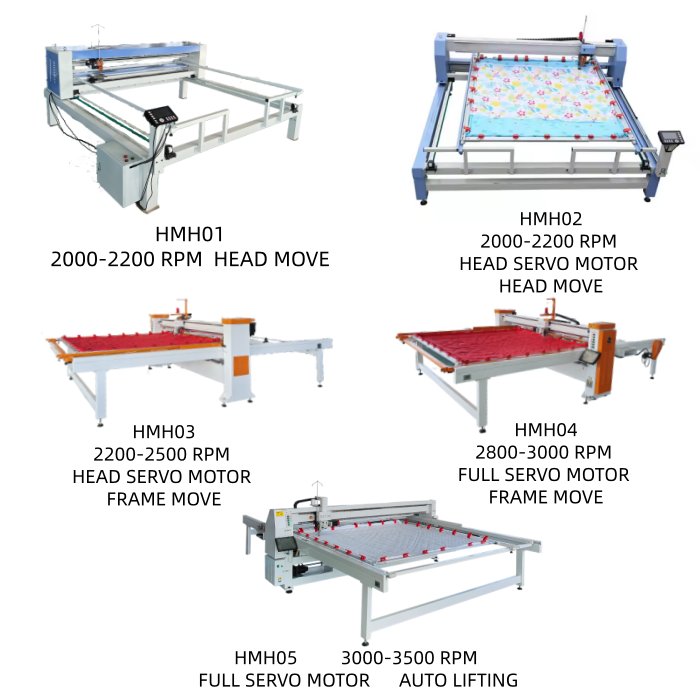

There are severail different industrial quilting machine with different configuration and price, pls contact us to choose the suitable industrial quilting machine.
