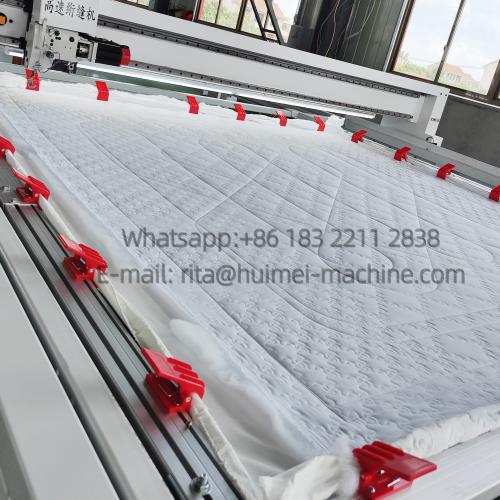

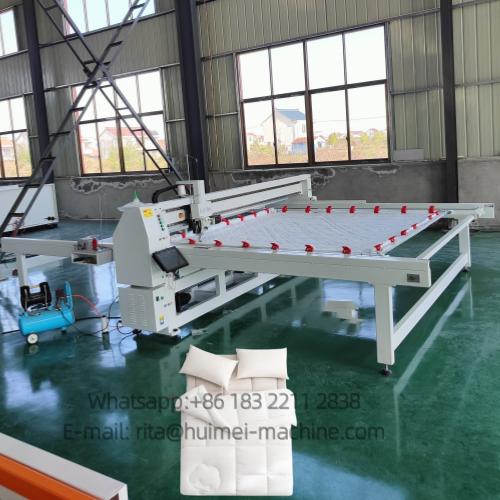

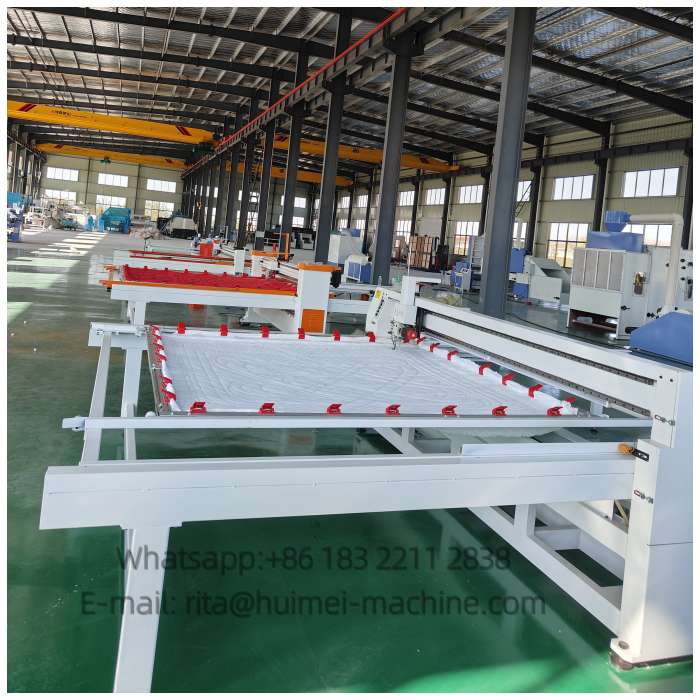

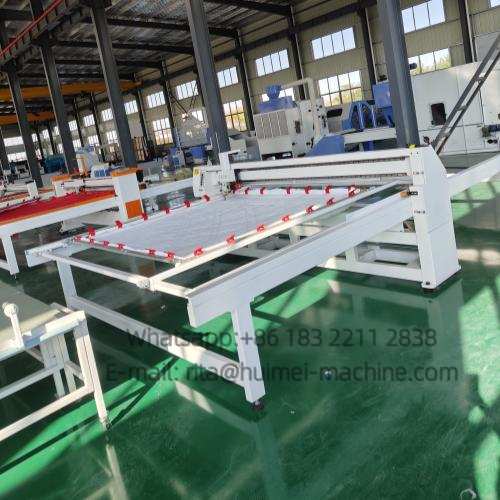

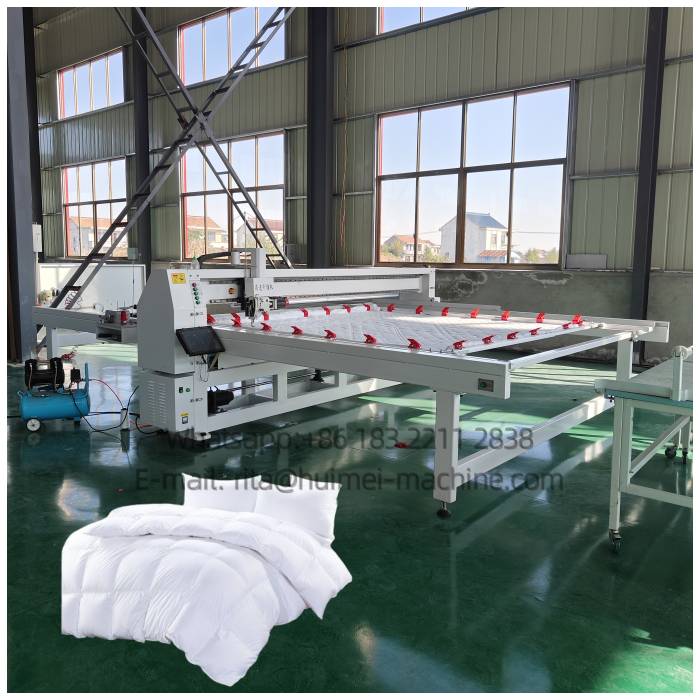

3500 RPM single head quilting machine full servo motor auto lifting

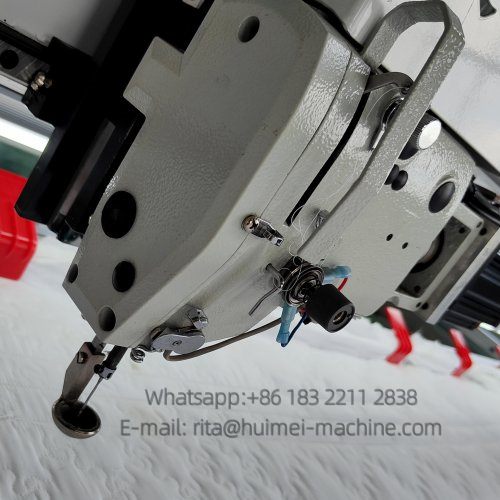

Full servo motor, direct drive head with automatic lifting
Computer touch screen can set work parameters and show the quilting status
Whatsapp: +8618322112838
E-mail:rita@huimei-machine.com
3500 RPM single head quilting machine full servo motor auto lifting
Single head quilting machine HMH05 is our most advanced quilting machine. Its full servo motor and direct drive machine head with auto lifting cause to reach 3500 RPM, It greatly improves work efficiency and is suitable for large factories or workshop owners with high output requirements.
| 3500 RPM single head quilting machine full servo motor auto lifting |
||||
| Model No. | HMH-05-2426 | HMH-05-2628 | HMH-05-2830 | HMH-05-3032 |
| Quilting size | 2.4*2.6 m | 2.6*2.8 m | 2.8*3.2 m | 3.0*3.2 m |
| Needle drop size | 2.2*2.4 m | 2.4*2.6 m | 2.6*3.0 m | 2.8*3.0 m |
| Machine head | Single head, single needle, double line lock style stitches. big rotary shuttle | |||
| Quilting speed | max 3500 RPM | |||
| Quilting thickness | max 1200 gsm, max 8 cm thickness | |||
| Stitch distance | 2-7 mm | |||
| Power | 220 V AC, 50HZ, 1.5 KW | |||
| Dimensions | 5.0*3.5*1.75 m | 5.0*3.7*1.75 m | 5.2*4.0*1.75 m | 5.2*4.2*1.75 m |
| Weight | 1200 kg | 1300 kg | 1500 kg | 1800 kg |
As one 3500 RPM single head quilting machine full servo motor auto lifting, it has several highlights for quilting:
1.Widely used, can be used for quilting quilts, bedspreads, mattresses, cushions and other bedding
2. Optimized double beam structure, full servo motor, the machine head adopts optical axis guide rail, the quilting speed can reach 3500 RPM
3. All patterns can be stored in hard disk, if you have any new patterns, no limited to upload its DST format by USB.
4. Computer contolled, can Remote maintenance control, update system. The background can view the daily production and equipment failure records
5. Free switching between Chinese, English and Russian, touch screen control, can set working parameters (step length, needle speed) in advance and monitor quilting status
6.Direct drive machine head, automatic thread trimming, automatic oiling, automatic lifting, many types of patterns to choose from, and can quilt independent small patterns
7.The machine stops automatically when the thread breaks, returns to the origin automatically after threading, and resumes quilting with one button
8.Repeated quilting of complex patterns ensures that the stitches do not deviate on one line and the pattern is perfectly presented
9.Equipped with high and low frame workbench, convenient for changing quilt materials and improving work efficiency
The service of 3500 RPM single head quilting machine full servo motor auto lifting
1: MOQ: 1 Set
2: professional pre-sales, recommend economical and affordable models according to your requirements.
3:7*24 hours online service. Engineers and after-sales personnel provide video guidance on operation issues.
4: bulk packing or wooden box packing is optional
5: various quotation ways: EXW, FOB, CFR,CIF , DDP etc.
