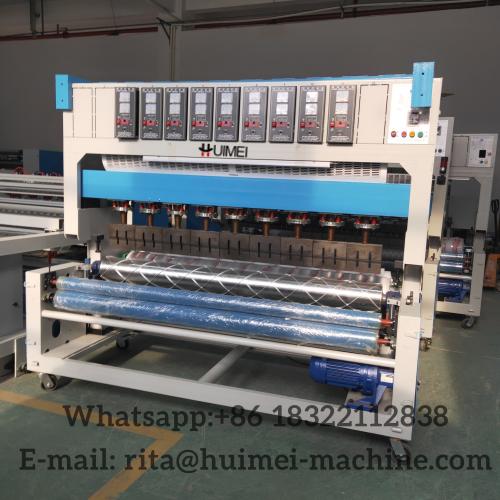

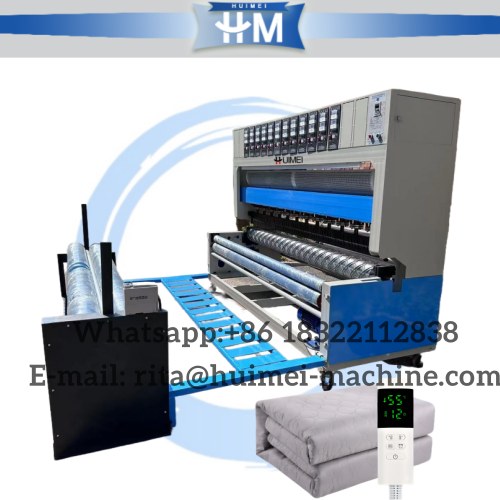

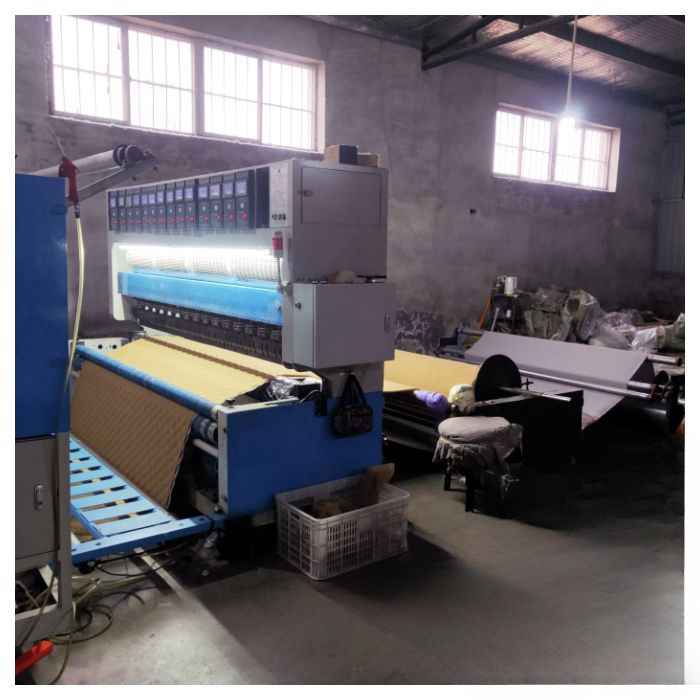

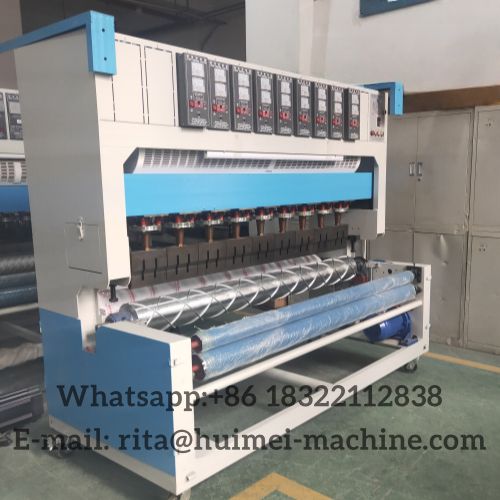

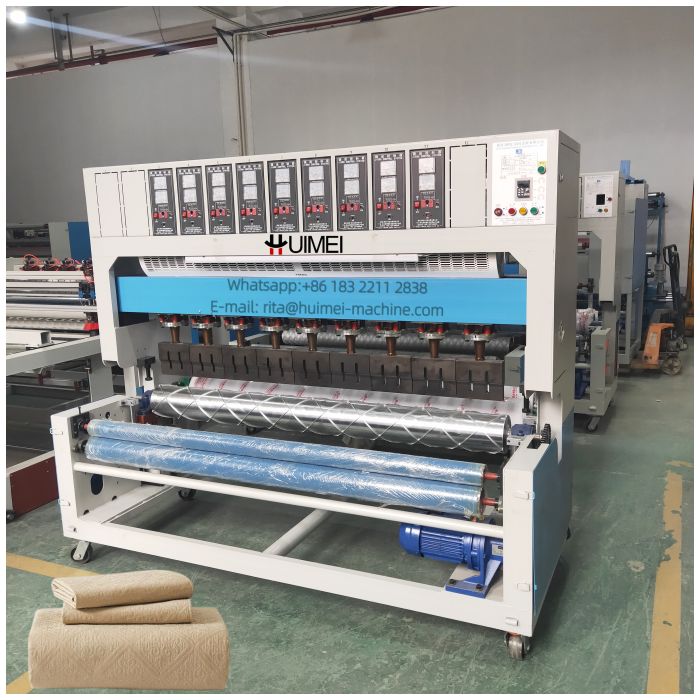

Holeless threadless ultrasonic fabric quilting machine for Water heating blanket

Huimei's hole-free threadless ultrasonic fabric quilting machine for Water heating blanket is very suitable for industries such as electric blankets and water-heating blankets that have high requirements for fabric processing. It has significant advantages in processing thick materials while ensuring firmness, moisture resistance, and no deformation. It can process both single-layer fabrics and pleated cotton products, making the fabric quilting machine applicable to multiple industries.

Hole-free threadless ultrasonic fabric quilting machine for Water heating blanket Features:

1: Customizable Effective Widths

We can customize fabric quilting machines based on the maximum width of the fabric. Currently, popular effective widths include: 1800mm, 2200mm, 2400mm, 2600mm, and 3000mm. A single fabric quilting machine can handle a variety of fabric sizes, equal to or smaller than the machine's dimensions, achieving multi-functionality.

2: Customizable Patterns of Hole-free threadless ultrasonic fabric quilting machine for Water heating blanket

We can customize pattern styles and embossing depths (popular depths: 3mm, 5mm, and 7mm) based on detailed customer requirements.

The typical diameter of the pattern roller is 176mm, with a minimum of 165mm and a maximum of 190mm.

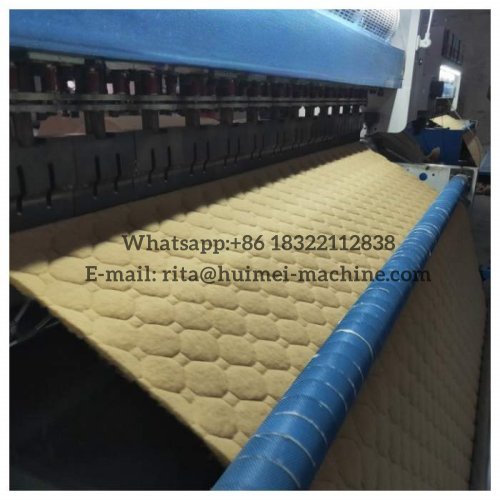

3: Fast Embossing Speed

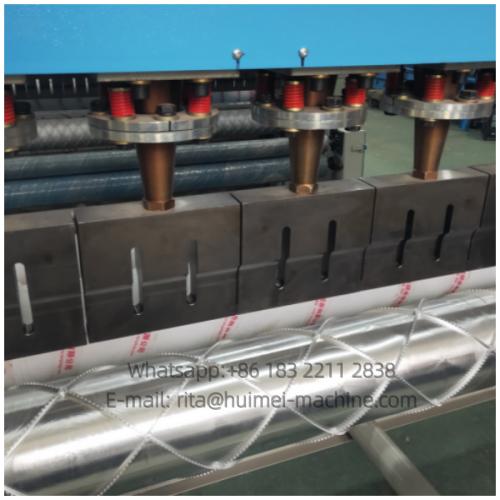

Hole-free threadless ultrasonic fabric quilting machine for Water heating blanket utilize an advanced high-frequency ultrasonic embossing and embossing composite process, achieving embossing speeds of 300-1800 m/h. The thinner the fabric, the faster the embossing speed. For example, for fabrics between 300gsm and 400gsm, the embossing speed is 300 m/h.

4: Capable of Processing a Wide Range of Fabrics

The fabric quilting machine performs high-frequency ultrasonic embossing, embossing, and laminating operations on flat-width flexible materials such as rayon, non-woven fabrics, chemical fiber fabrics, silk, leather, and more.

Note: Pure cotton products cannot be processed; the cotton content cannot exceed 70%. Polyester and cotton products are acceptable.

5: Automatic Fabric Quilting System

The ultrasonic fabric quilting machine can be combined with an poweless feeder and automatic rolling machine to further increase fabric processing speed, reduce manual intervention, and improve production efficiency.

6: Wide Range of Applications

The ultrasonic fabric quilting machine can be used in industries such as knitting, printing and dyeing, apparel, footwear, interior decoration, bedding, and automotive decoration.

The optional parts of Hole-free threadless ultrasonic fabric quilting machine for Water heating blanket

1: automatic cotton feeder

2: side cutting system

3:wooden box package
